BW-1000 Urine Sediment Analysis System

Product Image

Overview

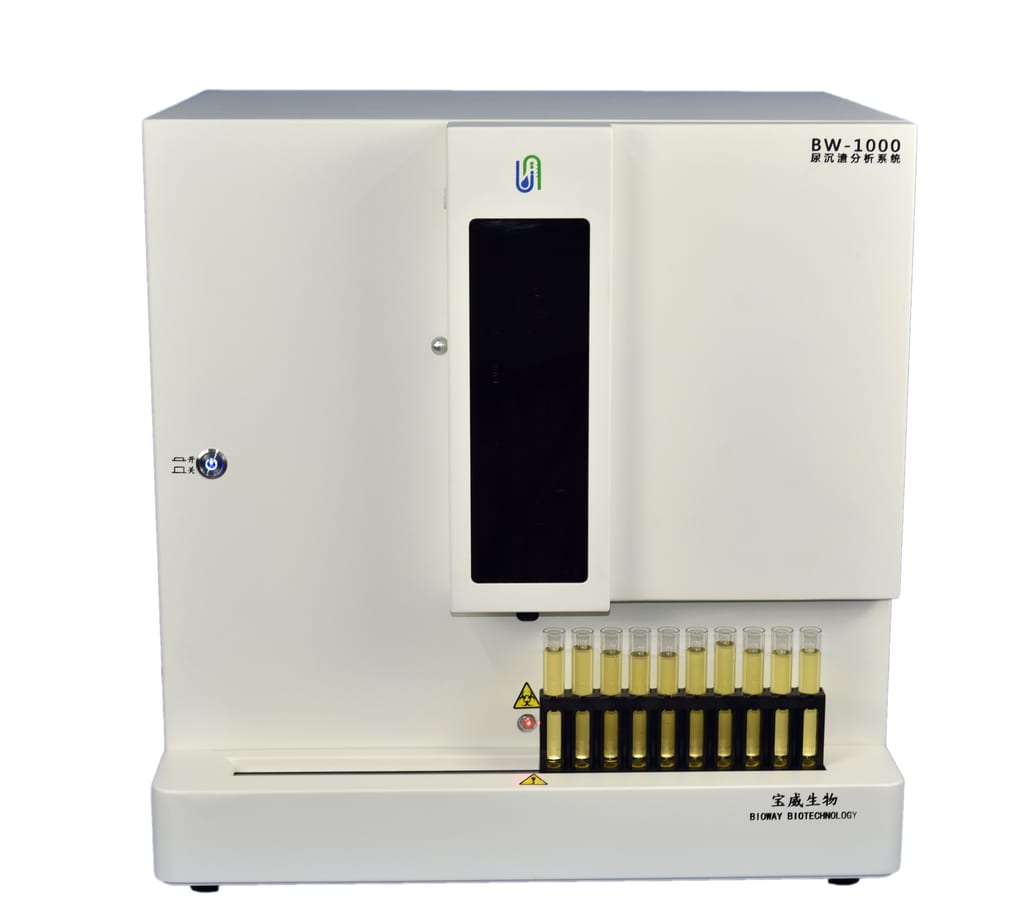

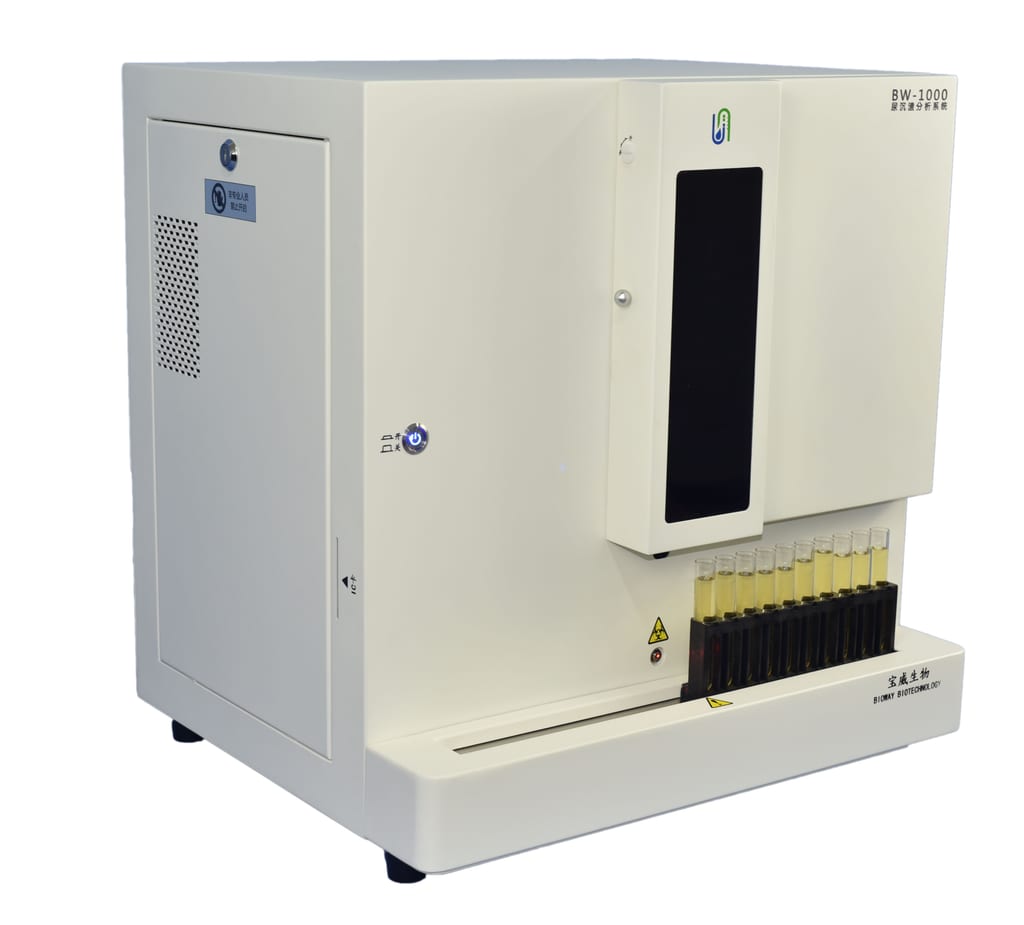

BW-1000 Urine Sediment Analysis System: Fully automatic track sampling, unattended operation, 10 samples loaded simultaneously, simple operation;

Routine testing in hospital clinical laboratories, outpatient/emergency departments, and physical examination centers
Primary medical institutions and third-party testing scenarios

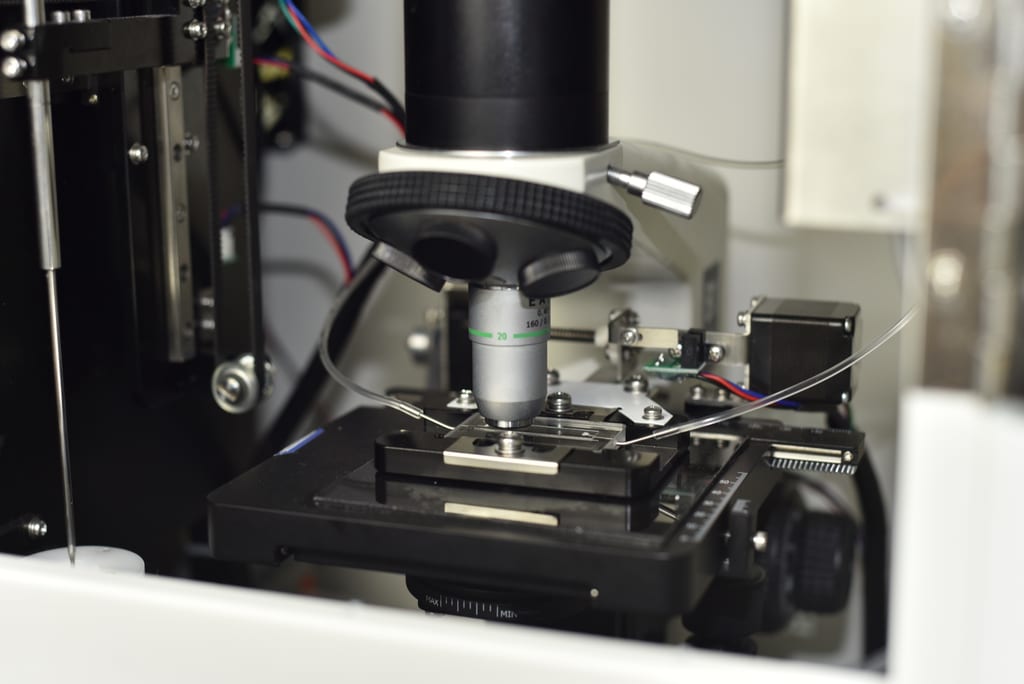

Can use dedicated focusing liquid to automatically calibrate the microscope focal length, ensuring clear and complete sample imaging.
Specimens do not require centrifugation and pretreatment; automatically completes sampling, mixing, aspiration, and sedimentation;
Automatically performs target recognition and classification counting on collected images;

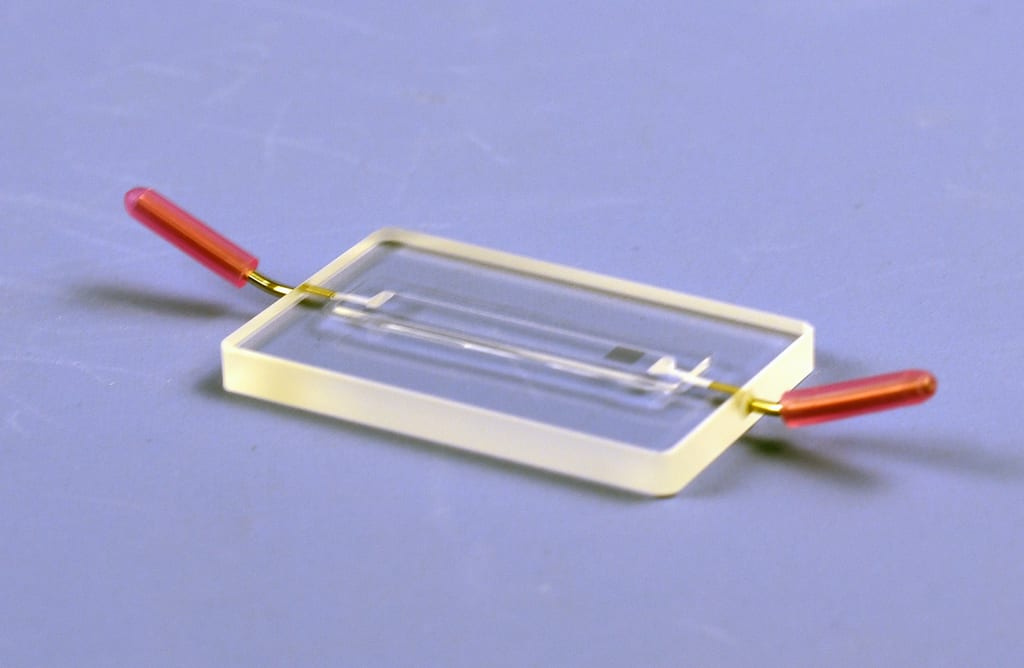

High-precision automatic counting chamber ensures accurate and stable detection specimen volume and consistent conditions, standardizing test results

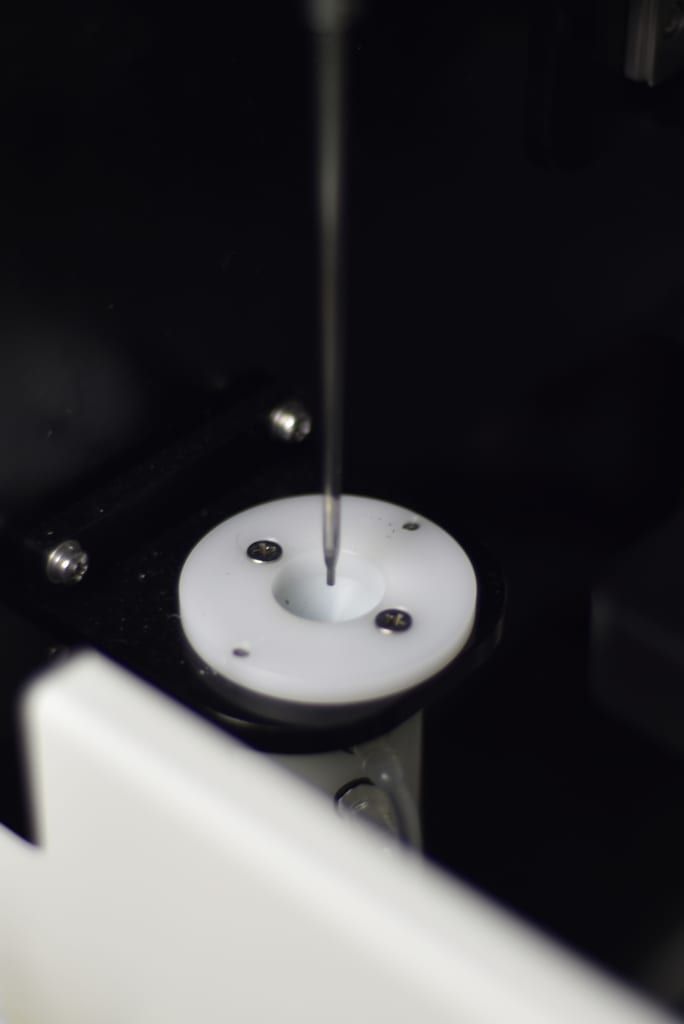

High-precision aspiration needle, tubing, and valves ensure high stability of the piping system;
Efficient automatic cleaning function effectively cleans the inner and outer walls of the aspiration needle and piping to avoid cross-contamination;
Features self-learning and training functions; the longer it is used, the higher the recognition rate
Can be connected to urine analyzers to provide comprehensive reports for dry chemistry and sediment,

Specifications

【Detection Principle】Utilizing machine vision technology:Automatically recognizes and classifies counts of formed elements in urine using microscopic automatic morphological methods with real-scene images.

【Test Items】Red blood cells, white blood cells, pus cells, squamous epithelial cells, non-squamous epithelial cells, transparent
【Throughput】30-50 samples/hour.

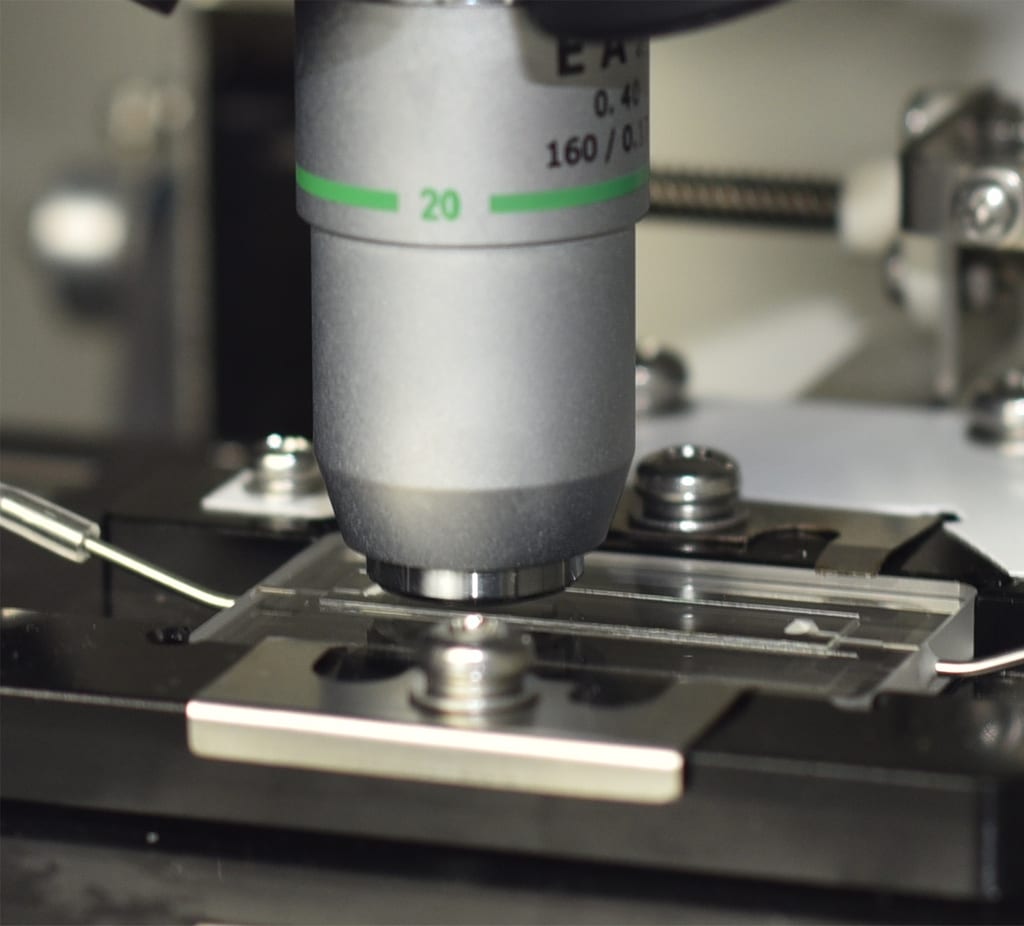

【Detection Method】Low-power magnification screening for rapid classification of negative specimens; high-power magnification for target recognition, classification, and counting of red blood cells, white blood cells, crystals, etc.
【Sample Volume】Minimum urine volume 2ml, minimum aspiration volume 0.5ml
【Sample Processing】Samples do not require centrifugation and can be loaded directly for testing.
【Sampling Method】Fully automatic track sampling, 10 samples loaded simultaneously.

【Data Interface】Full set of computer data interfaces, can connect to dry chemistry urine analyzers, printers, and networks.
【Standard Configuration】Built-in computer, standard monitor, mouse, keyboard, printer.

Casts, unclassified casts, crystals, bacteria, blood bacteria, sperm, mucus strands, and other various urine formed elements
【Accuracy】Above 90% (with manual auxiliary review).
【Repeatability Test】CV:< 10%
【Carryover Rate】<:0.05%
【Reporting Method】xx个/μl:Internationally accepted quantitative unit, combined image and text report for dry chemistry analysis and formed element quantitative analysis.
