Overview

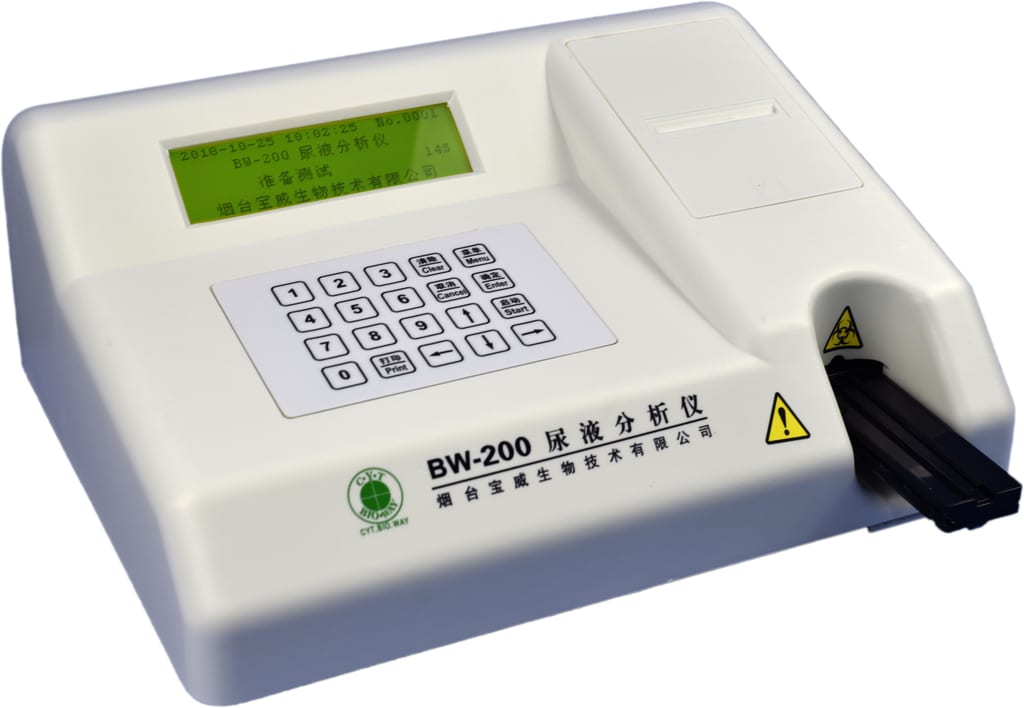

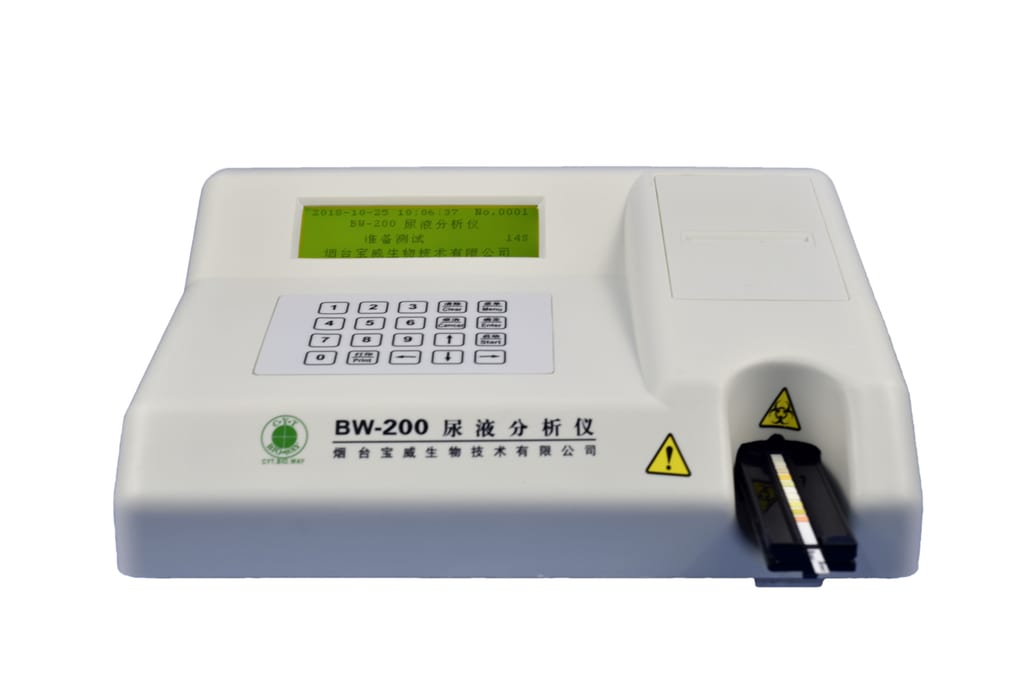

BW-200 Urine Analyzer
● Core Positioning
BW-200 Urine Analyzer adopts the principle of ultra-high brightness cold light source reflectance measurement, suitable for routine urine dry chemical testing, meeting the daily testing needs from primary care to hospital departments.
● Product Features
- Convenient
- Fast
- Accurate
- Simple
Specifications
● Basic Information
- Model:BW-200
- Product Type:Urine Analyzer
- Measurement Principle:Ultra-high brightness cold light source, reflectance measurement principle
- Applicable Range:8 items, 10 items, 11 items, 14 items
● Testing Capability
- Test Items:Glucose (GLU), Bilirubin (BIL), Ketone (KET), Specific Gravity (SG), pH, Occult Blood (BLD), Protein (PRO), Urobilinogen (URO), Nitrite (NIT), Leukocytes (LEU), Ascorbic Acid (VC), Creatinine (CRE), Calcium Ion (CAL), and Microalbumin (MAL)
- Test Speed:60-120 samples/hour
- Detection Wavelength:525nm-660nm
● Display and Storage
- Recording Method:Thermal printing / LCD display

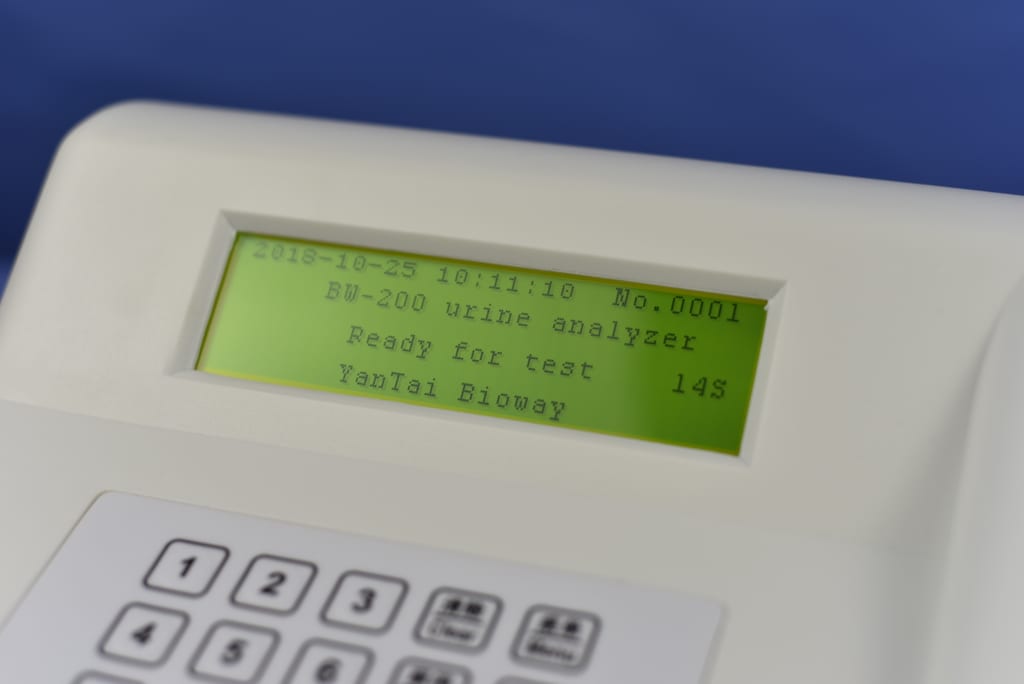

- LCD Display:240×64 dot matrix, 37mm×130mm
- Data Storage:Can store 2000 test results, searchable by record number
● Interface and Report
- Data Communication:RS232 interface, can connect to external urine sediment analysis systems, hospital management systems
- Report Format:Selectable international units or conventional units
● Electrical and Environmental
- Working Environment:15℃~35℃, Humidity <85%
- Power:50VA
- Net Weight:≤3Kg
- Printing Method:Built-in high-speed thermal printer
- Fault Diagnosis:Instrument self-check combined with standard liquid quality control testing
- Dimensions:360mm×384mm×150mm
