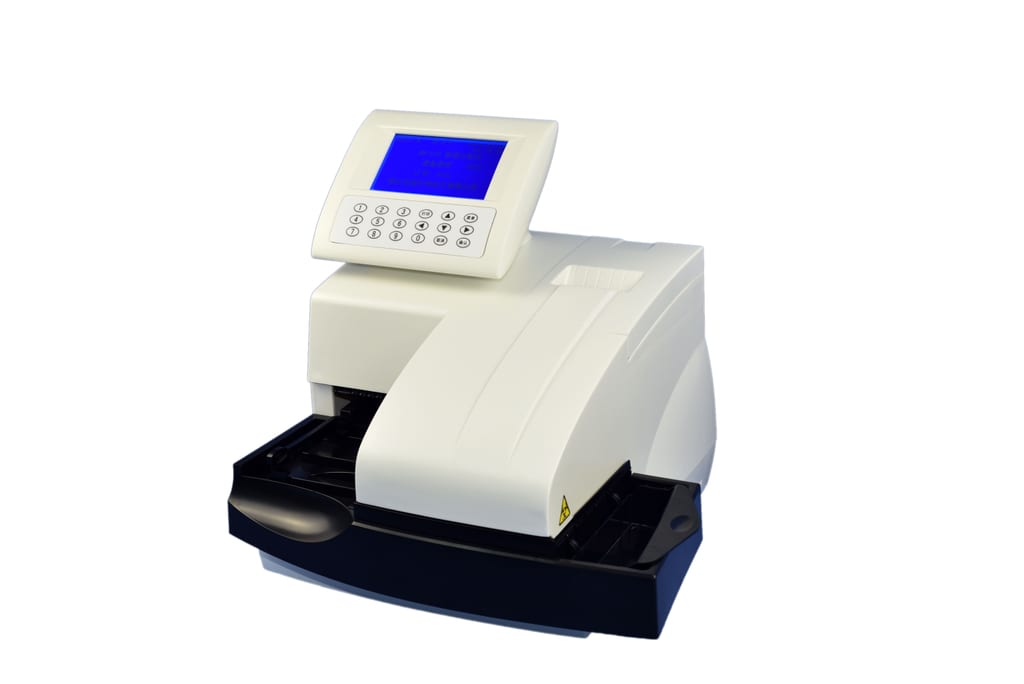

BW-500
● Core Positioning
BW-500: Unique 32-bit ARM architecture central processor: powerful data processing function, test results
● Application Scenarios
- Unique ambient temperature monitoring system: reduces the impact of laboratory environment on test results.
● Product Advantages
- The accuracy and repeatability are further improved, and the instrument functions are more powerful.
- Unique dual CPU design, faster calculation speed, more test points, and more reliable results
- Unique IC card control system: reduces inter-batch differences of test strips, more accurate results
- Unique system upgrade function: convenient TF card upgrade and maintenance function, users can synchronously experience the latest software support.
- Unique customizable multi-communication protocol: can directly transmit data with LIS, HIS, urine sediment, and other systems.
Specifications
● Basic Information

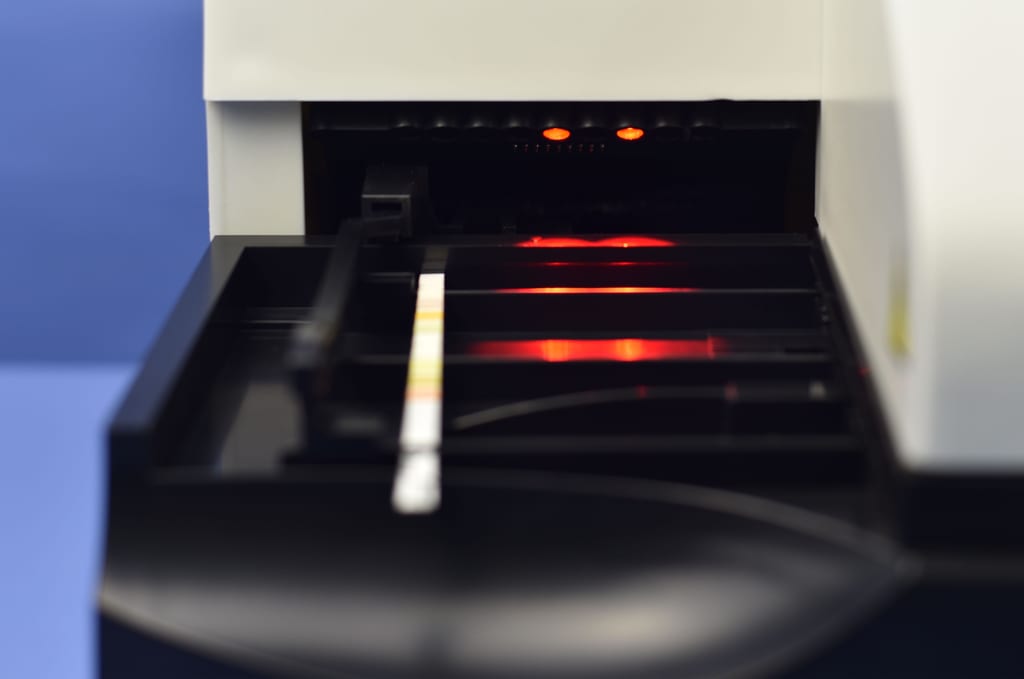

- Measurement Principle:Ultra-high brightness cold light source, three-wavelength reflectance measurement principle
● Detection Capability

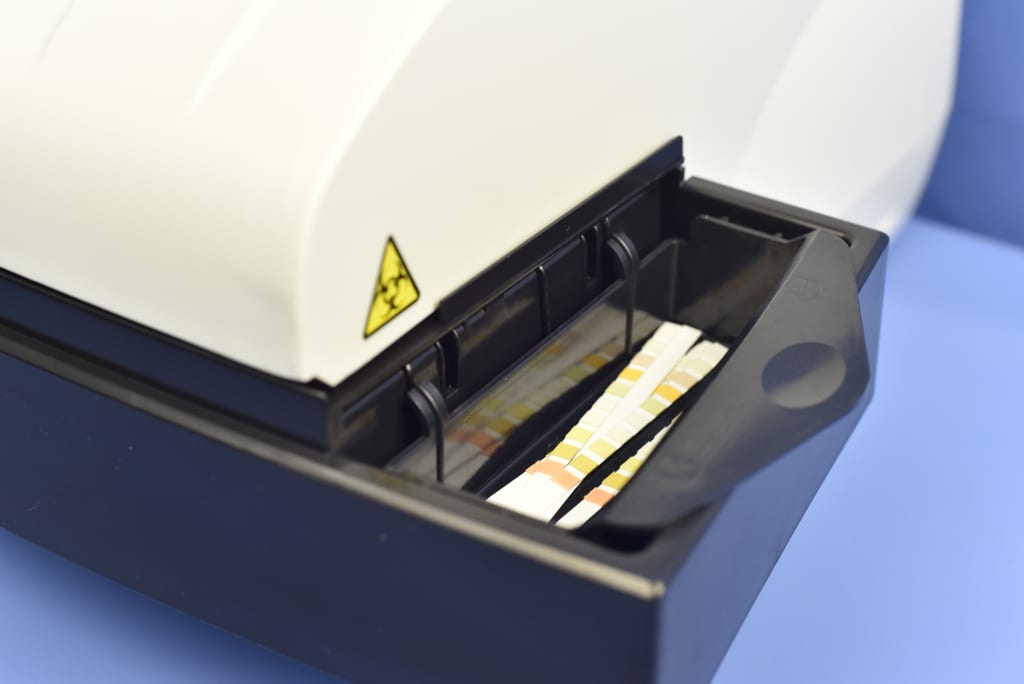

- Applicable Range:11, 14-item test strip compatible
- Test Items:Glucose (GLU), Bilirubin (BIL), Ketone (KET), Specific Gravity (SG), pH (PH), Occult Blood (BLD), Protein (PRO), Urobilinogen (URO), Nitrite (NIT), Leukocytes (LEU), Ascorbic Acid (VC), Creatinine (CRE), Calcium Ion (CAL), Microalbumin (MAL)
- Data Storage:Large-capacity memory. Can store 2000 test results, can query test results based on record number, etc.
- Test Speed:500 samples/hour
- Detection Wavelength:525nm-660nm
- Fault Diagnosis:Instrument self-check combined with standard grayscale strip detection
● Display and Storage

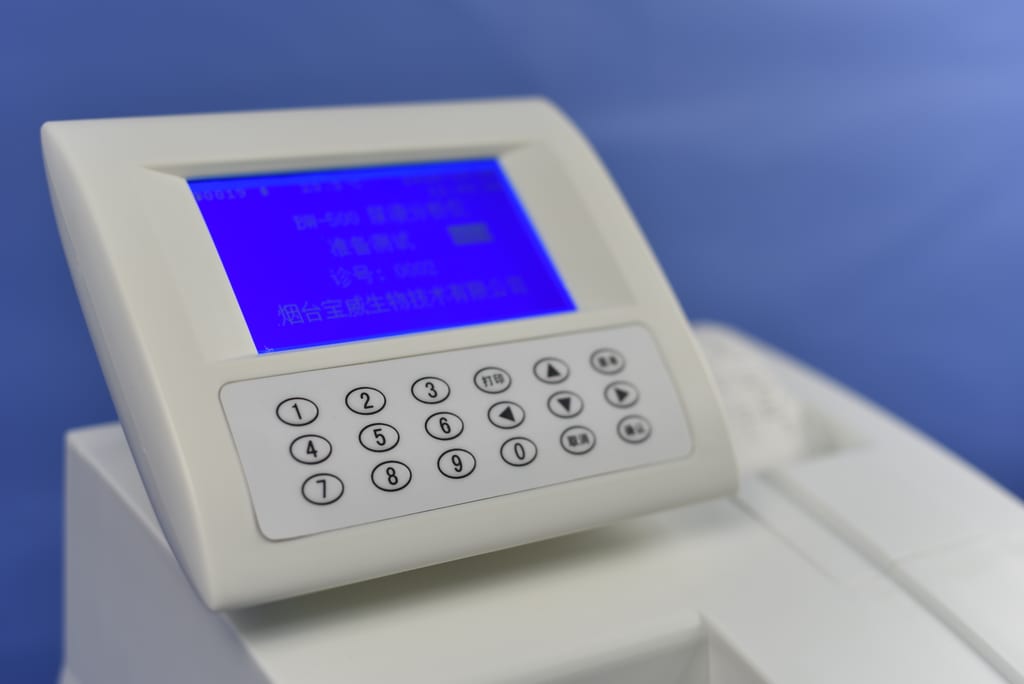

- Display:240X128 extra-large screen display
● Interface and Connection
- Peripherals:Reserved RS232 interface. Can connect to external urine sediment analysis system, hospital management software (HIS, LIS)
● Electrical and Environment

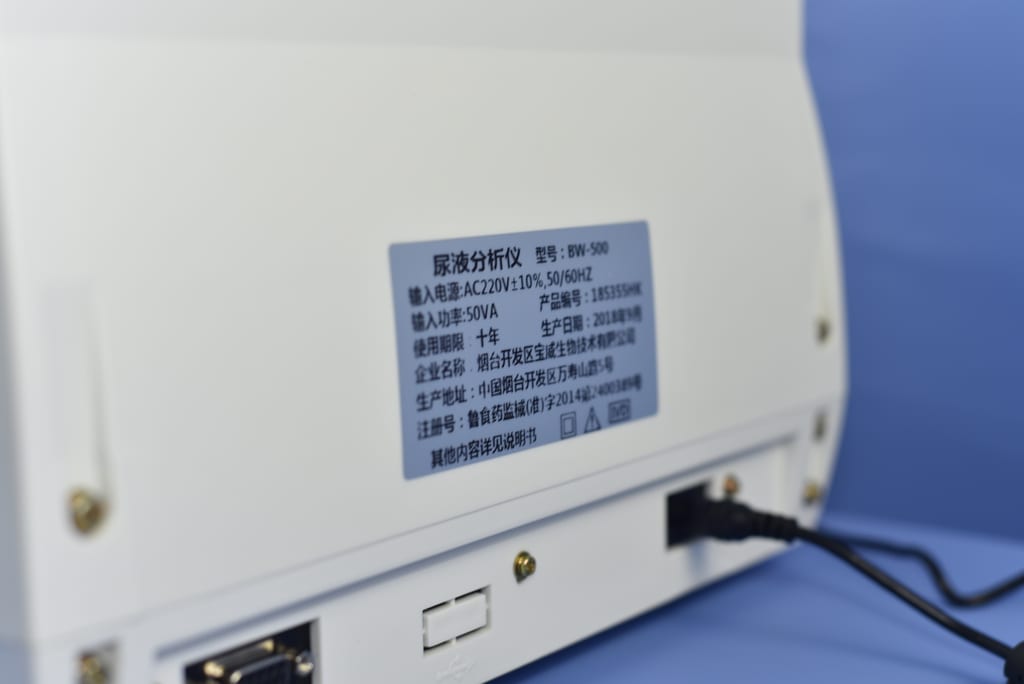

- Power Supply:External power supply, AC 220V±10%, 50-60Hz, safe and reliable
- Printing Method:Built-in high-speed thermal printer
- Working Environment:15-35 ℃, humidity <85%
